Tune-o-matic Bridge For Archtop Guitar – StewMac
Original price was: $57.89.$40.52Current price is: $40.52.
- Shop with Confidence, Pay Safely
- Get Quality, Get More
- Best price, safe shopping guarantee
- Quality You Can Trust

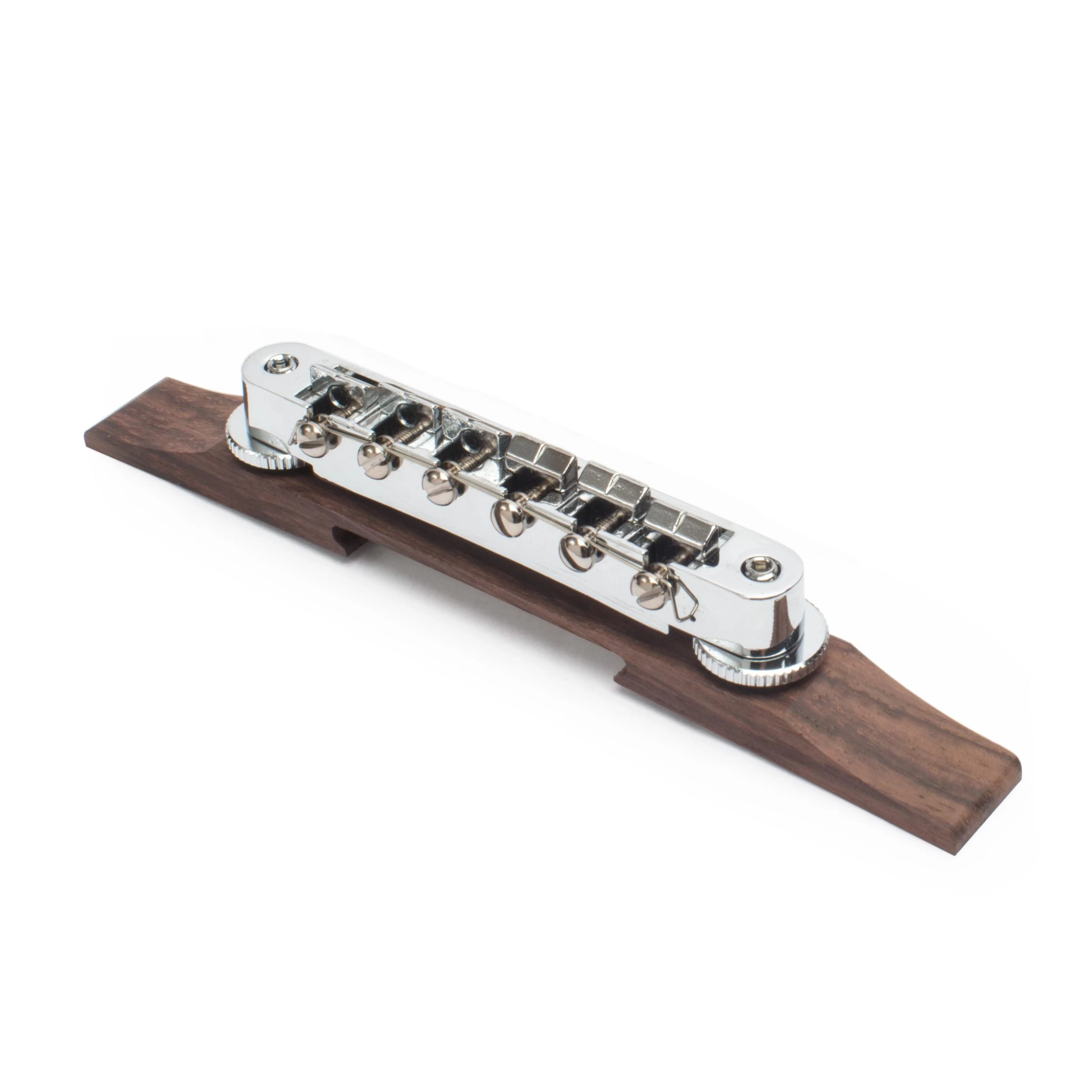

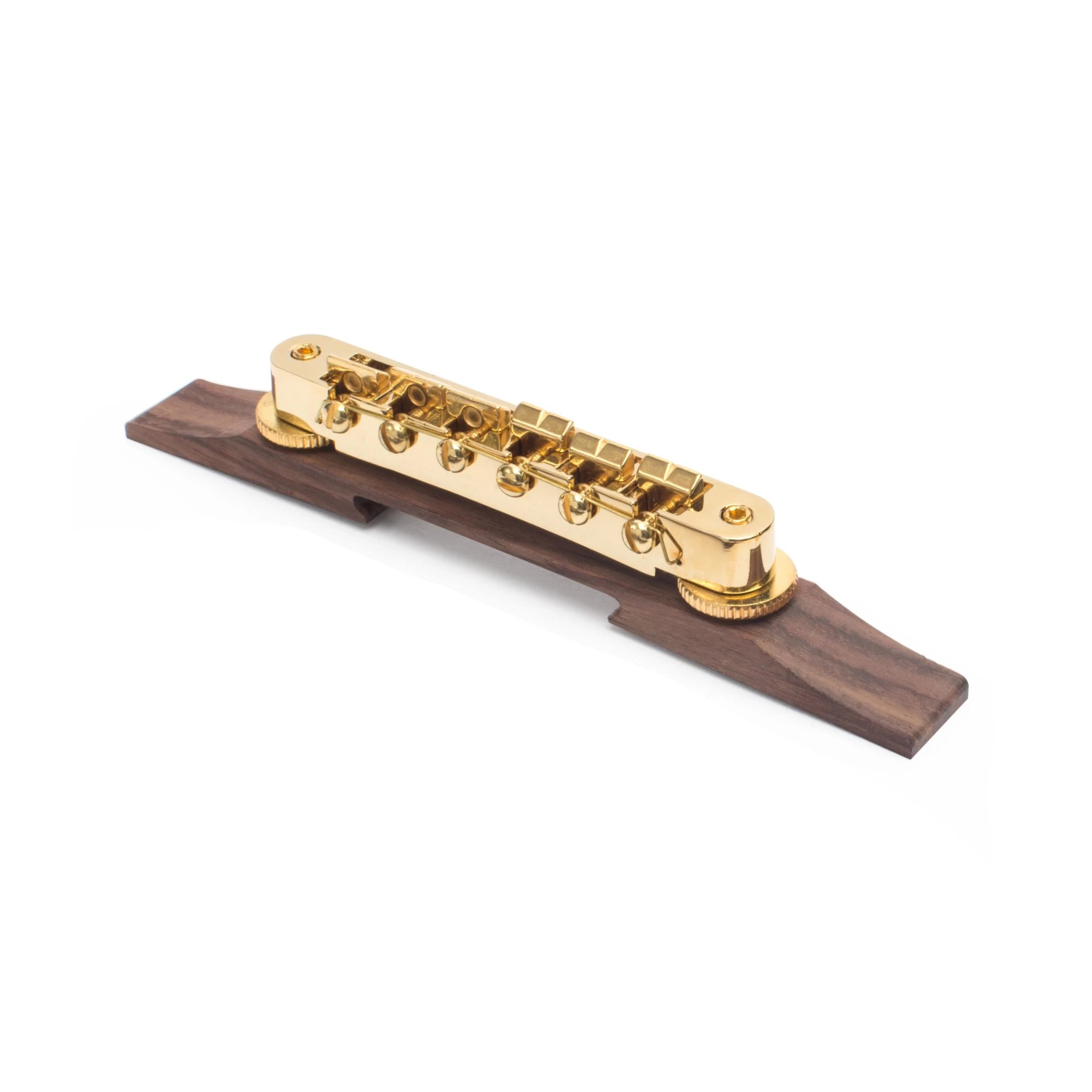

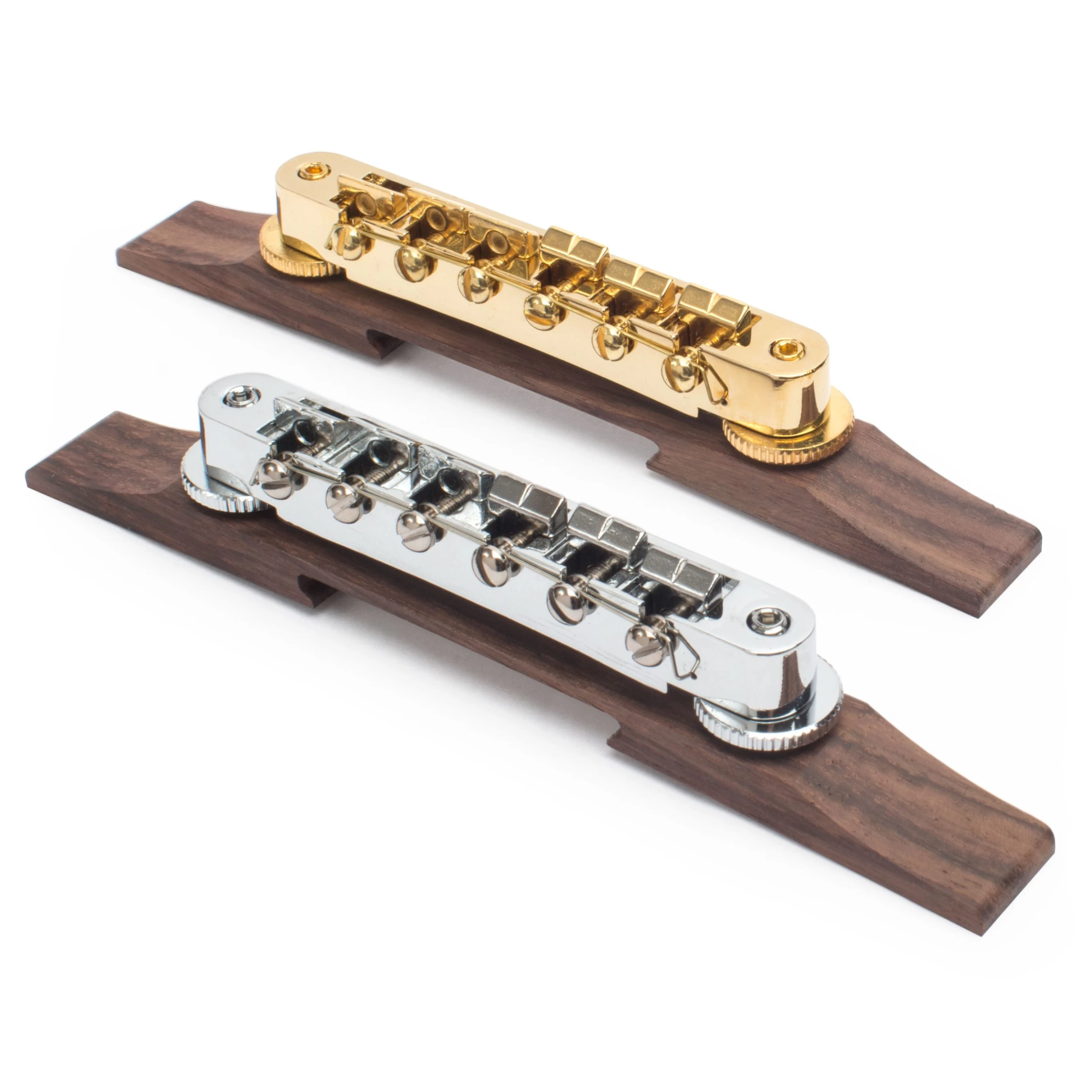

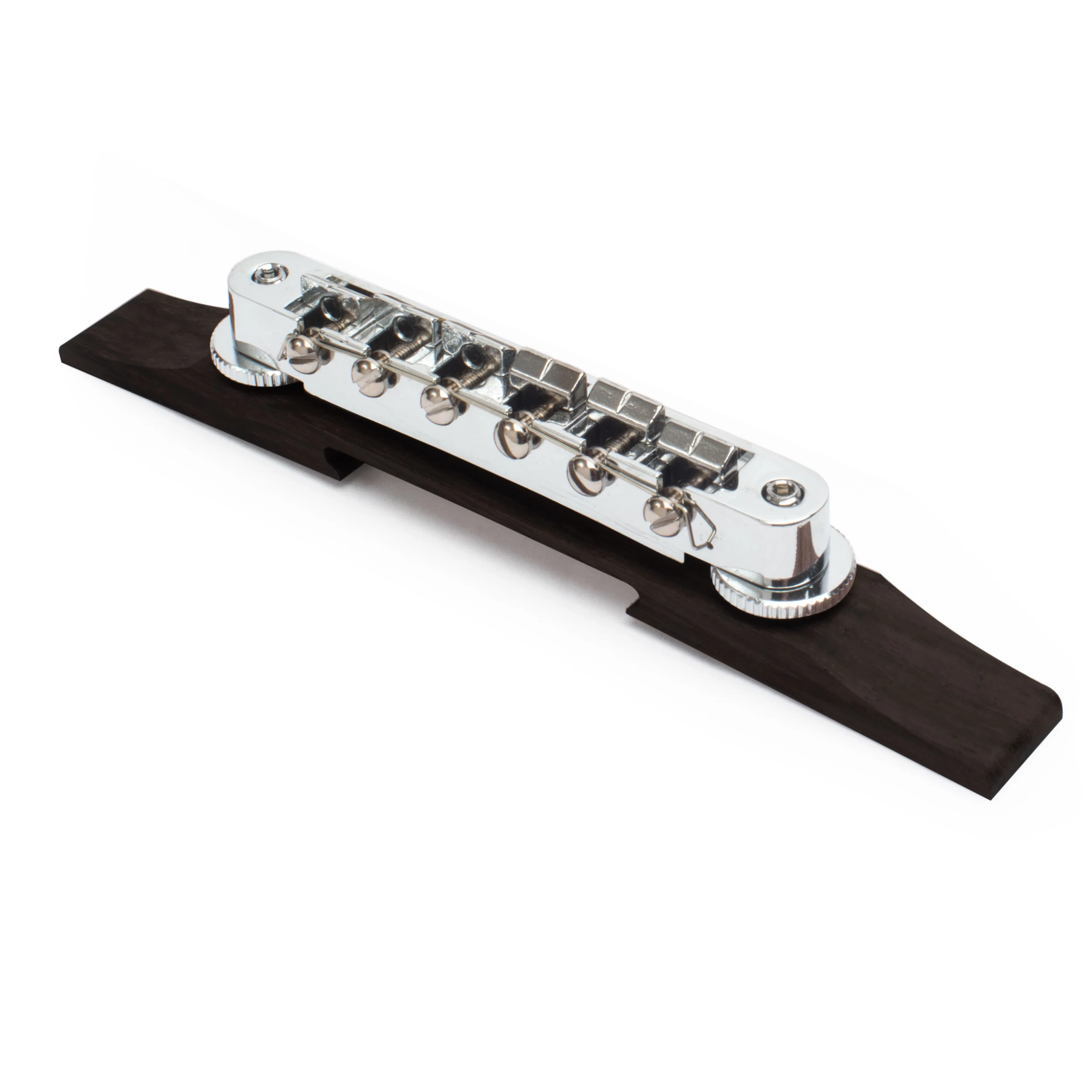

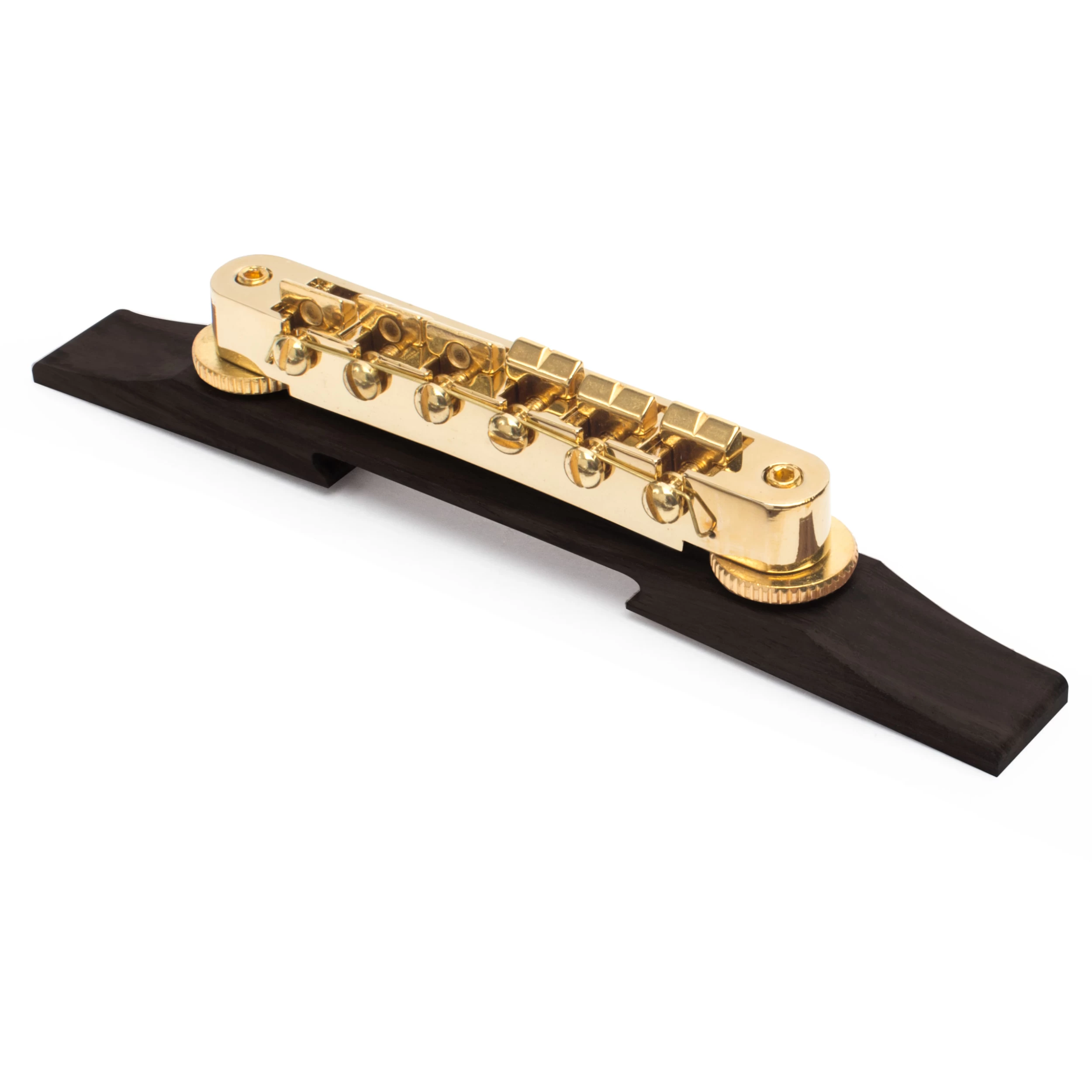

Tune-o-matic Bridge For Archtop Guitar
Tune-o-matic mounted on top of a tonewood base. The ideal upgrade for more accurate intonation on archtop and semi-hollow electrics.
- String spread
2-1/32″
(51.59mm) - Saddle radius
14″
(356mm) - Post spacing
2-29/32″
(73.82mm) - Post threads
M4 x 0.7
The height is thumbwheel-adjustable from approximately 7/8″ to 1-1/4″ (22.23mm to 31.75mm). Saddles are pre-slotted and adjustable to set accurate string intonation.
About bridge & tailpiece measurements
String spread is the distance between the centers of the outer strings on a bridge or tailpiece.
Saddle radius determines the arc formed by all the individual saddle heights, and is similar to the measurement of a fretboard.
Stud/post spacing is the distance between the centers of the mounting posts of a bridge or ‘stop’ tailpiece.
Positioning the bridge
Find bridge placement for any scale with our free online tool fret position calculator.
Find bridge placement for any scale with our free online tool fret position calculator.
-
- Item #
- Weight
-
- 3959
- 0.160 lbs. (0.07 kg)
-
- 3959-G
- 0.150 lbs. (0.07 kg)
-
- 3961
- 0.160 lbs. (0.07 kg)
-
- 3961-G
- 0.160 lbs. (0.07 kg)
