StewMac Machinist Square Set

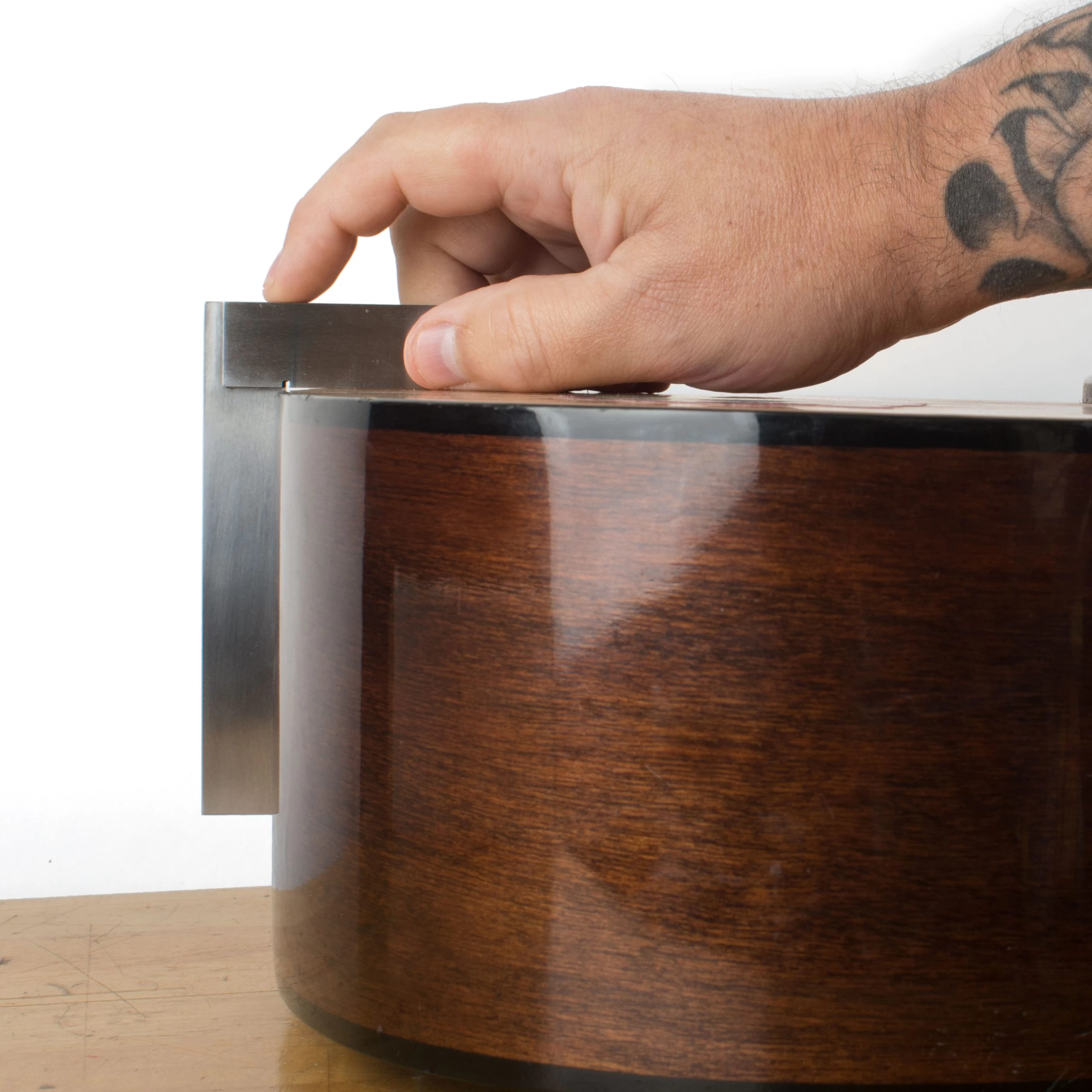

Building and repairing guitars requires extreme accuracy

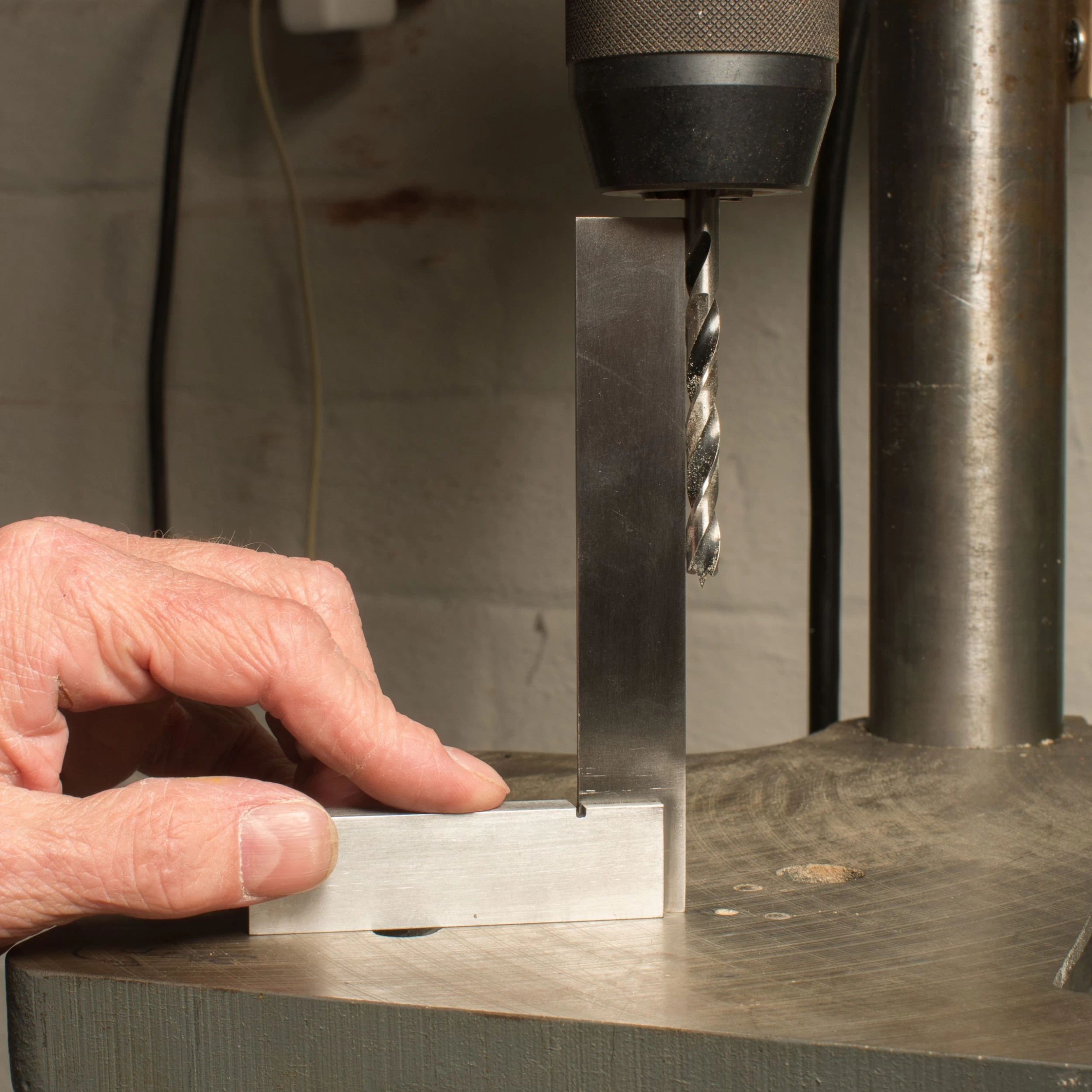

Critical tasks like setting up your drill press, table saw, and checking squareness of your work is made simple with this handy tool set.

These squares are accurate to 0.0006″ (on both the inside and outside face) giving you confidence you can depend on.

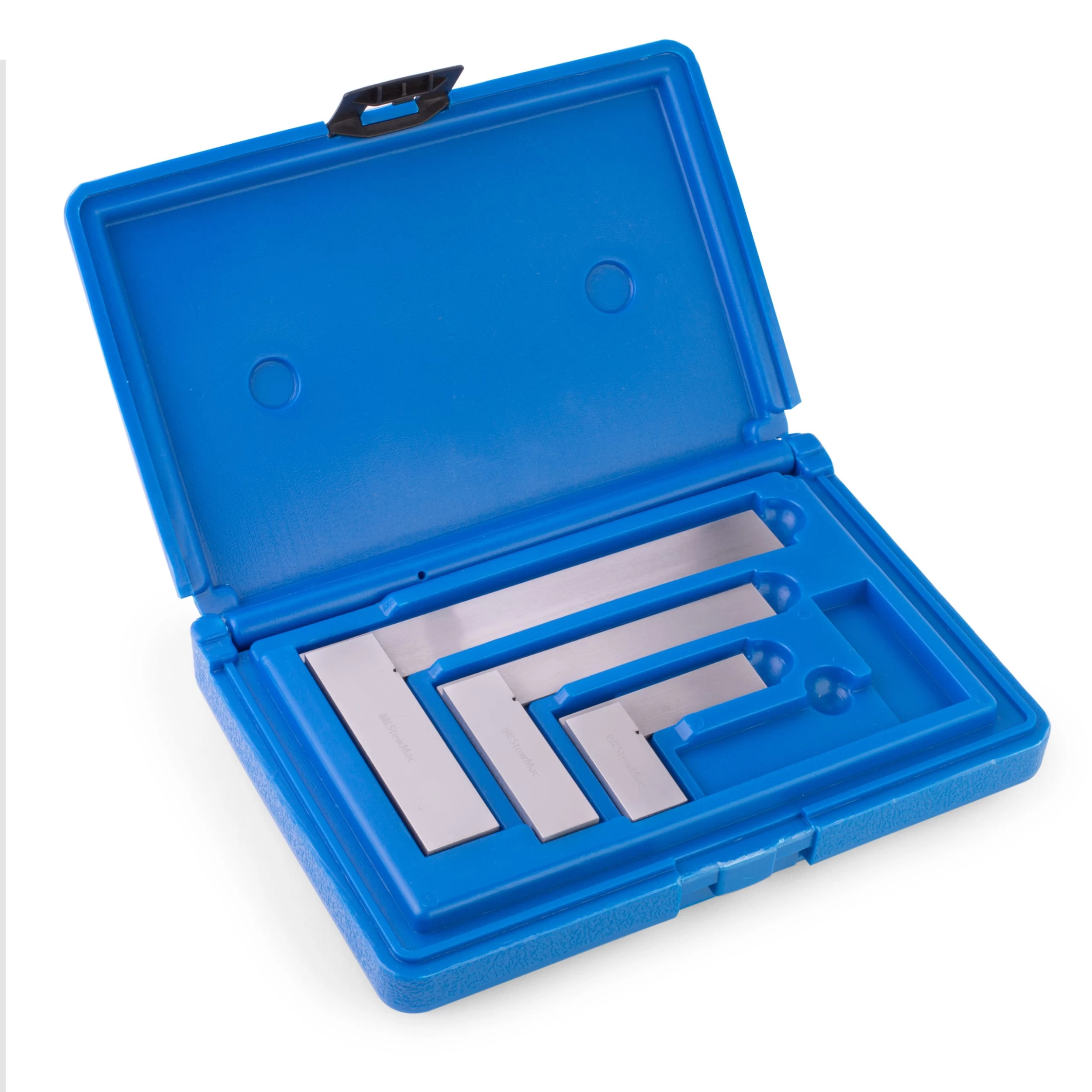

And, you get all three! The set includes 2″, 4″, and 6″ squares for any job in your shop.

Lifetime of precision
• Made of high quality tool steel
• Two accurate sides: true right angles on both inside and outside edges
• Beams and blades are precision-ground flat
• Hardened blade for lifetime of accuracy
• Three useful sizes: 2″, 4″, and 6″
• Thick base stops “wobble”
• Inside and outside edges squareness to 0.0006″

Dimensions:
2″ square:
Blade: 2″ x 0.71″ x 0.06″ (50mm x 18mm x 1.5mm)
Base: 1.8″ x 0.76″ x 0.33″ (46mm x 19mm x 8mm)

4″ square:
Blade: 4″ x 0.73″ x 0.06″ (101mm x 18mm x 1.5mm)
Base: 2.79″ x 0.76″ x 0.33″ (71mm x 19mm x 8mm)

6″ square:
Blade: 6″ x 0.95″ x 0.06″ (152mm x 24mm x 1.5mm)
Base: 3.72″ x 0.96″ x 0.41″ (94mm x 24mm x 10mm)
