JLD Bridge Doctor

• Enhances volume
• Flattens ‘bellied’ soundboards

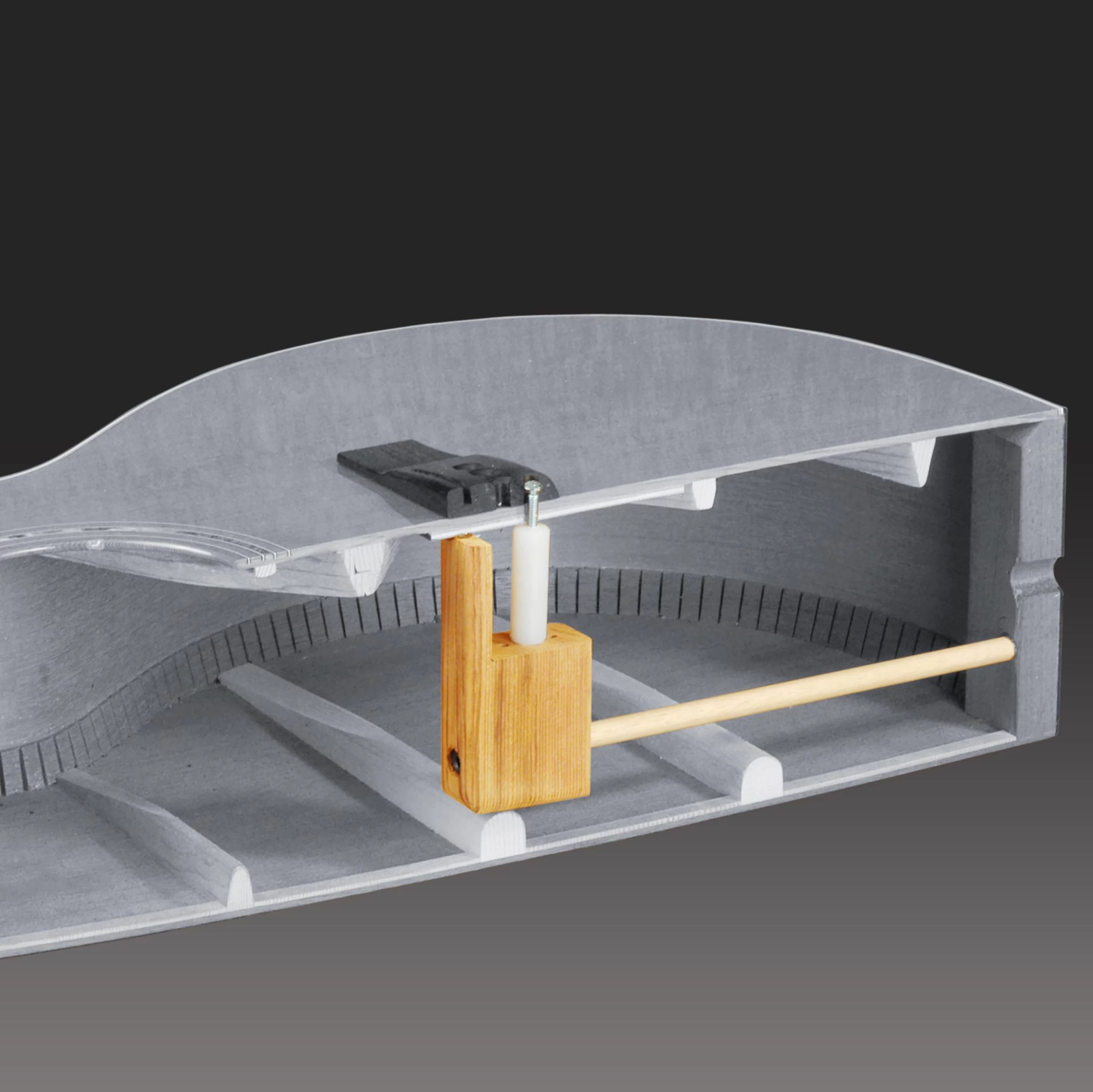

A unique solution to a common bridge problem, this spruce device attaches beneath a guitar bridge. An adjustable spruce “pressure post” rests against the tail block, providing leverage to flatten the soundboard.

The spruce block is 3/4″ x 1-5/8″ x 3-3/8″ tall. The 1/4″-diameter tension rod is 9″ long. The mounting post has three different positions to accomodate a variety of bridge styles.

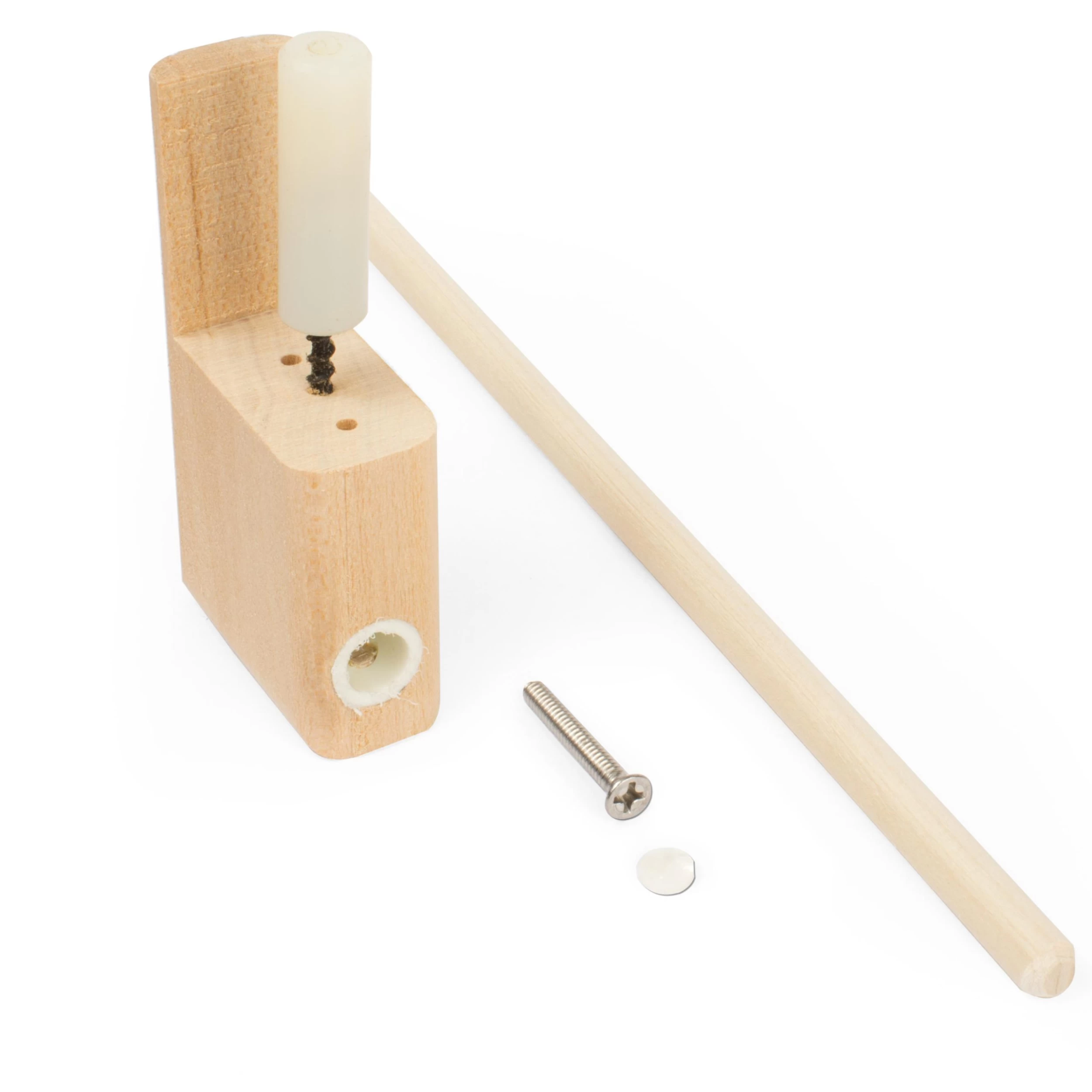

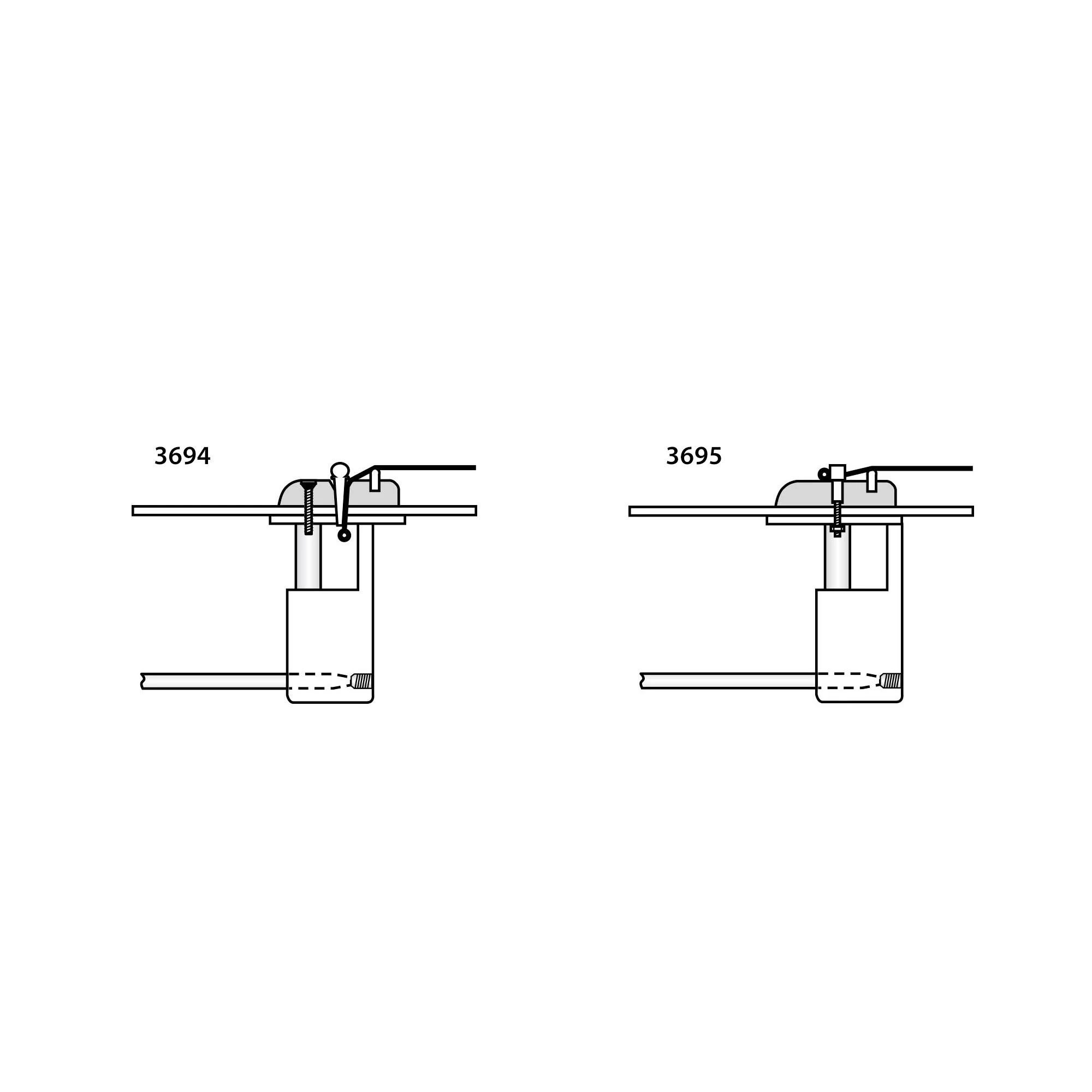

Screw mount: This spruce device attaches beneath the bridge via an inlaid screw (a white pearloid dot is included to hide the bridge screw). An adjustable spruce pressure post rests against the tail block, providing leverage to flatten the soundboard. Better bridge contact and alignment can also enhance sound projection.

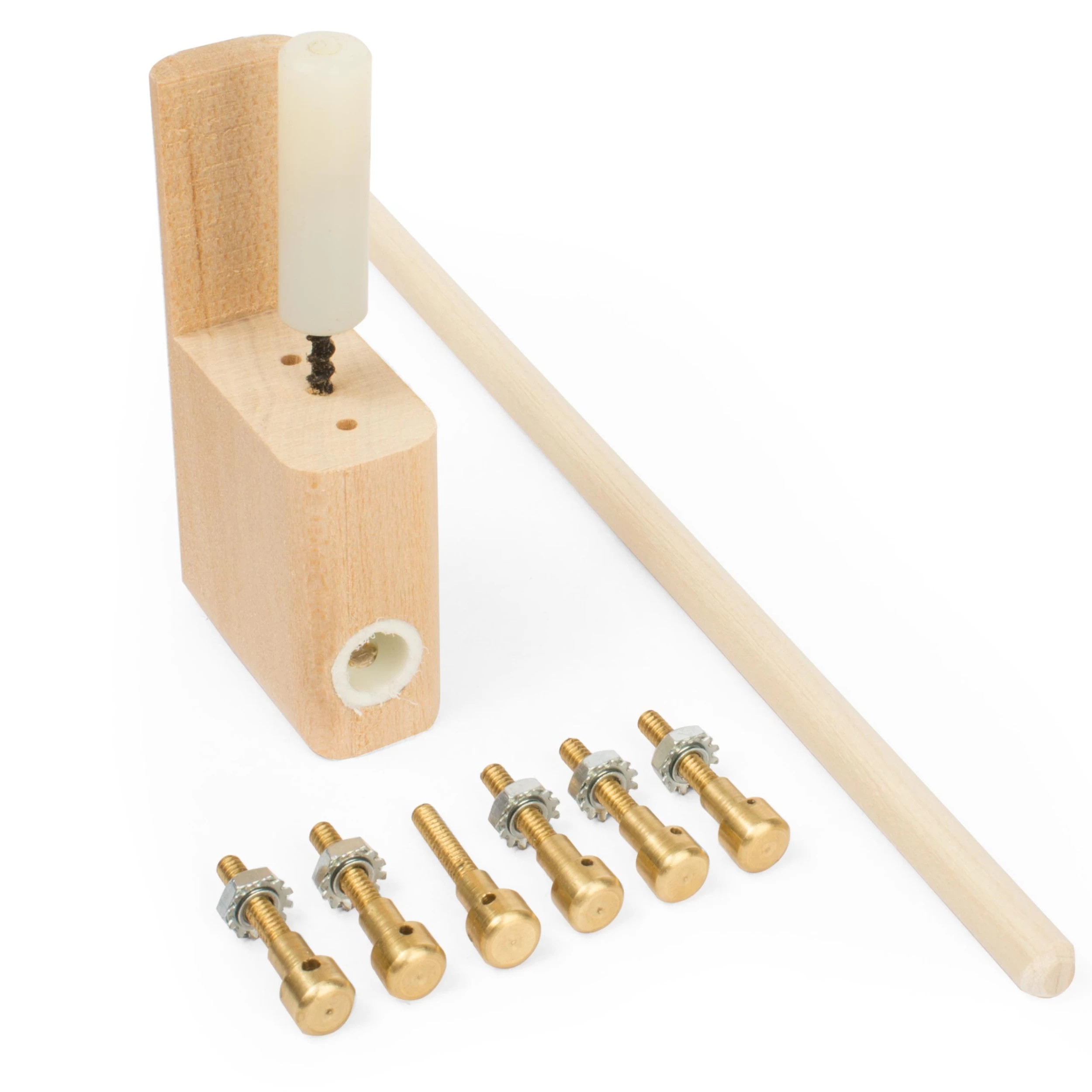

Brass pin mount: The pin-mounted version of the JLD Bridge Doctor attaches beneath the bridge using a threaded brass bridge pin. The strings mount horizontally through the tops of the matching brass bridge pins (included).

StewMac Tech Tip: We recommend the brass pin mount version for 12-string guitars.
