Gotoh Tune-o-matic Bridge With Standard Posts – StewMac
Original price was: $25.48.$17.84Current price is: $17.84.
- Shop with Confidence, Pay Safely
- Get Quality, Get More
- Best price, safe shopping guarantee
- Quality You Can Trust

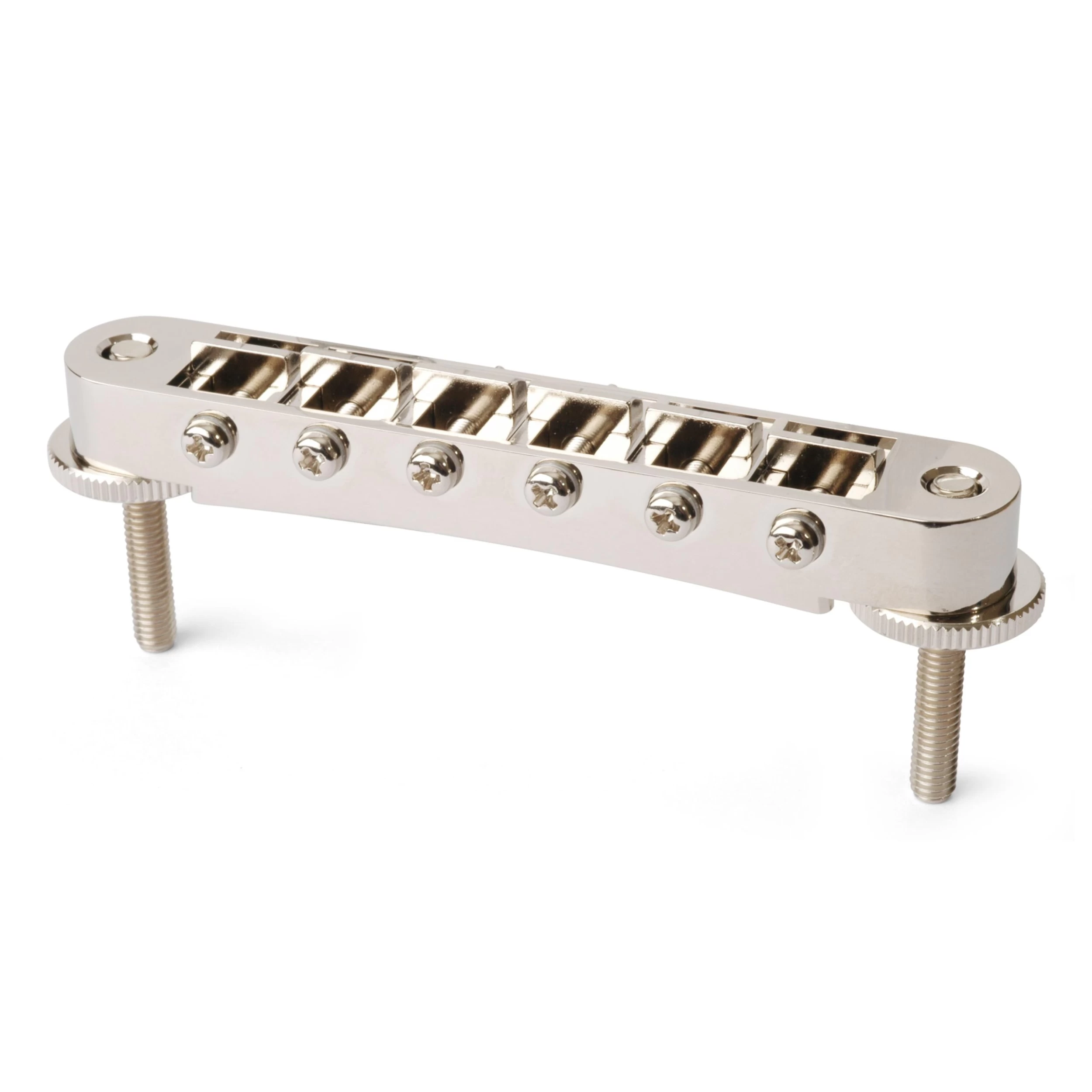

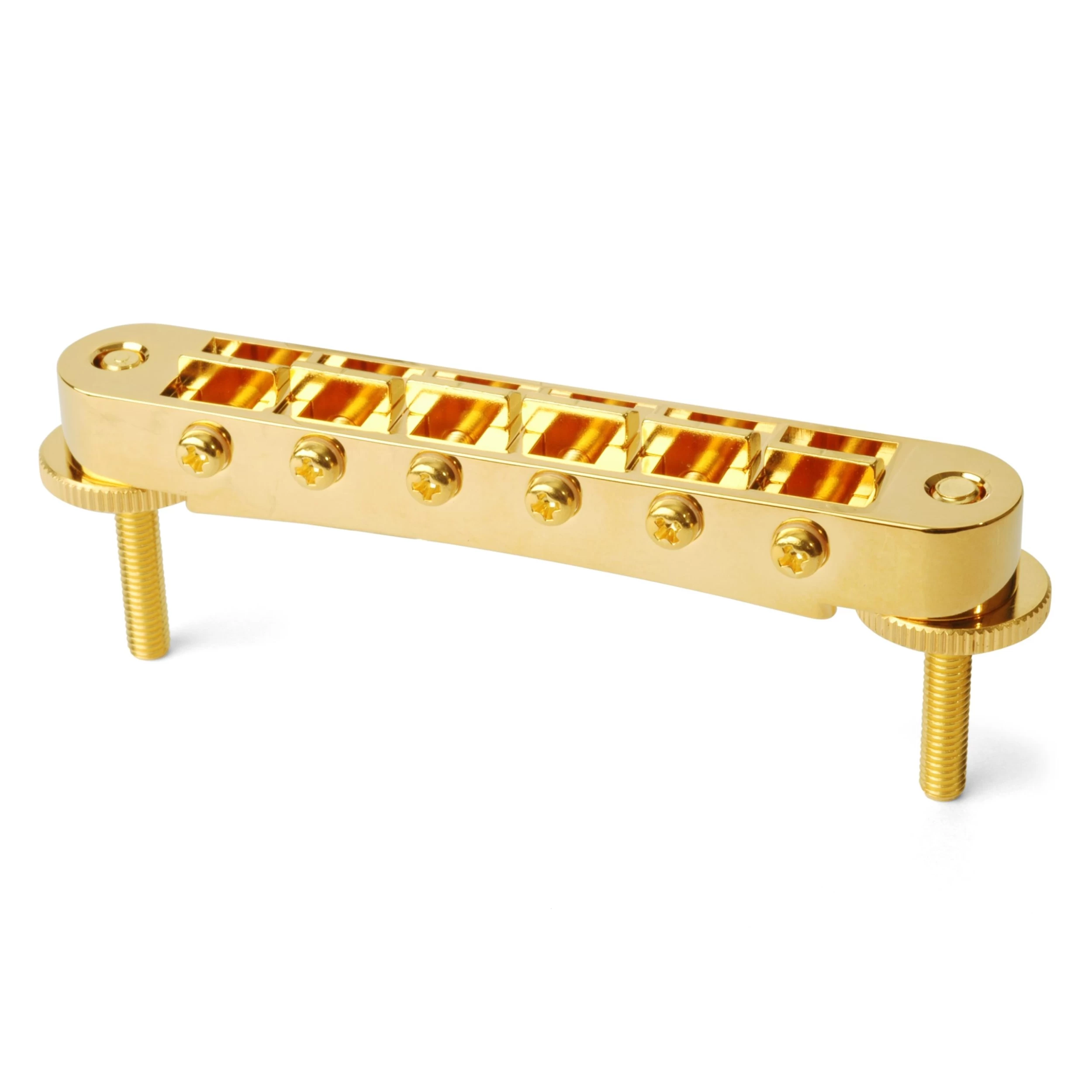

Gotoh Tune-o-matic Bridge with Standard Posts
A popular modern version of the Tune-o-matic for solidbody guitar. Saddles are pre-notched with individual saddle intonation screws retained by mini hex nuts.

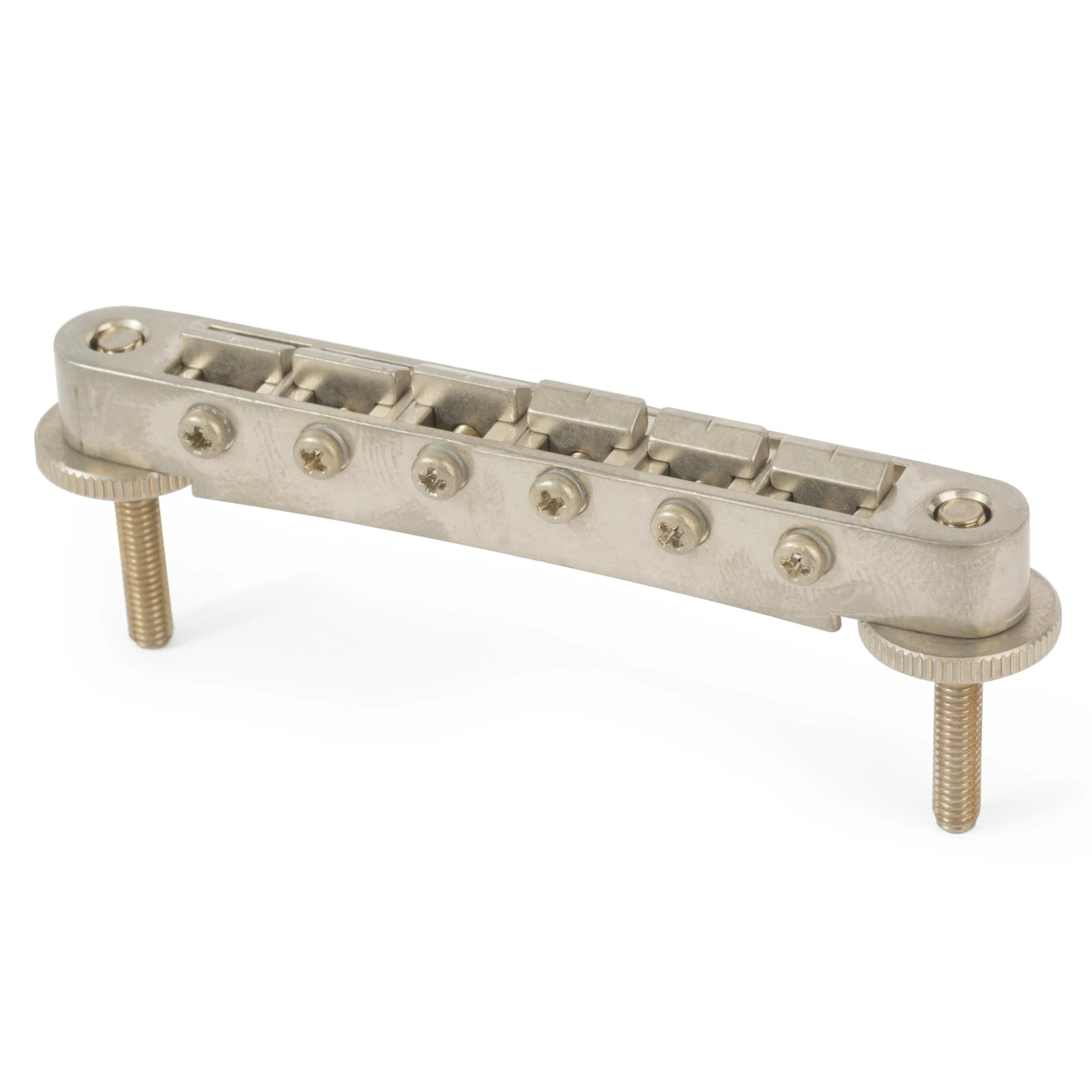

New bridge with vintage appeal: distressed look of the Relic Nickel plating is perfect for repairing old guitars, when shiny new hardware just won’t do.

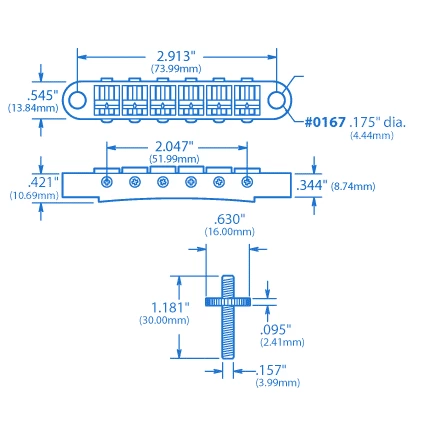

- String spread
2-1/16″
(51.99mm) - Saddle radius
12″
(304.80mm) - Post spacing
2-29/32″
(73.99mm) - Post threads
M4 x .7
About bridge & tailpiece measurements
String spread is the distance between the centers of the outer strings on a bridge or tailpiece.
Saddle radius determines the arc formed by all the individual saddle heights, and is similar to the measurement of a fretboard.
Stud/post spacing is the distance between the centers of the mounting posts of a bridge or ‘stop’ tailpiece.
Positioning the bridge
Find bridge placement for any scale with our free online tool fret position calculator.
Find bridge placement for any scale with our free online tool fret position calculator.
-
- Item #
- Weight
-
- 0167
- 0.1530 lbs. (0.07 kg)
-
- 0167-G
- 0.1535 lbs. (0.07 kg)
-
- 0167-N
- 0.1554 lbs. (0.07 kg)
-
- 0167-RN
- 0.140 lbs. (0.06 kg)
