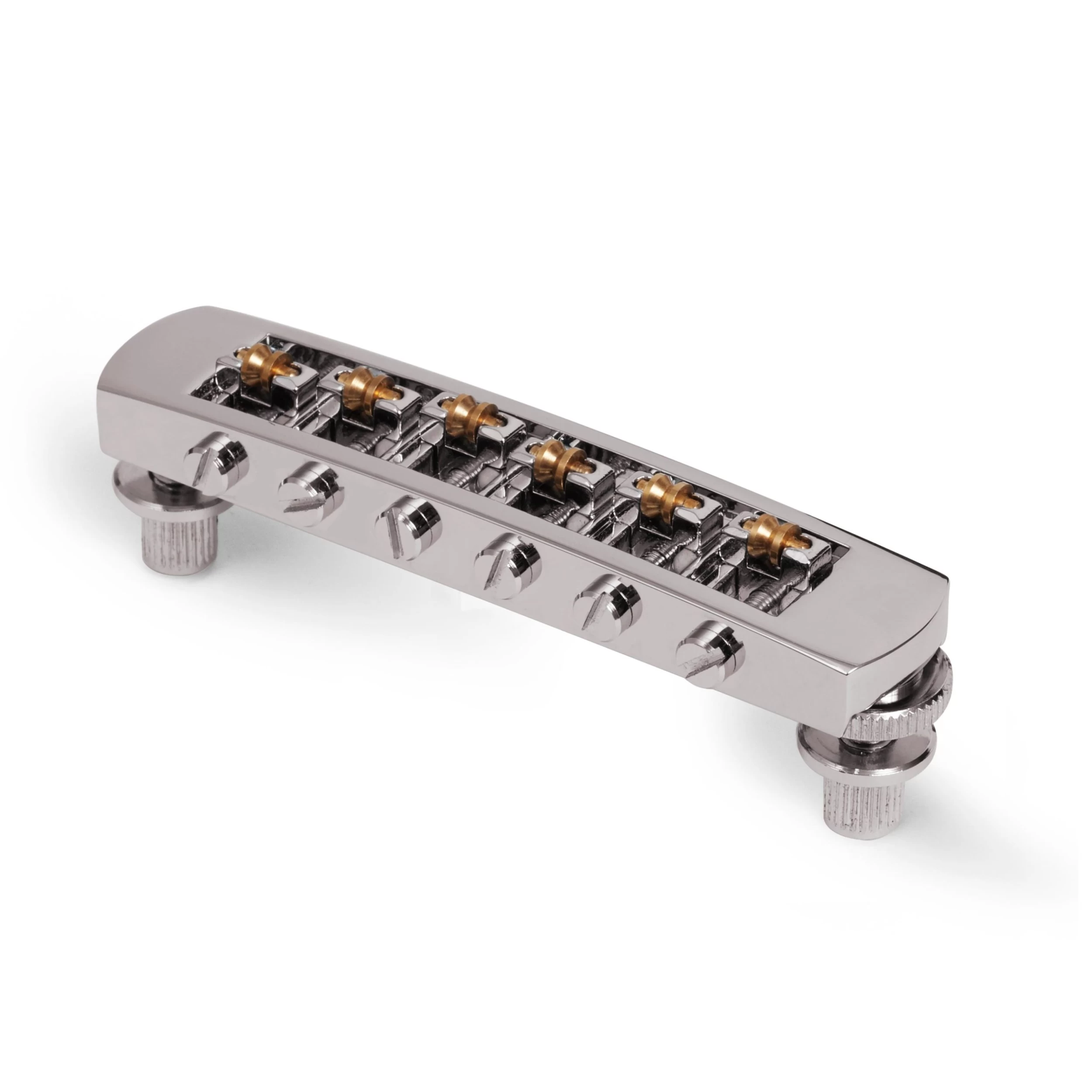

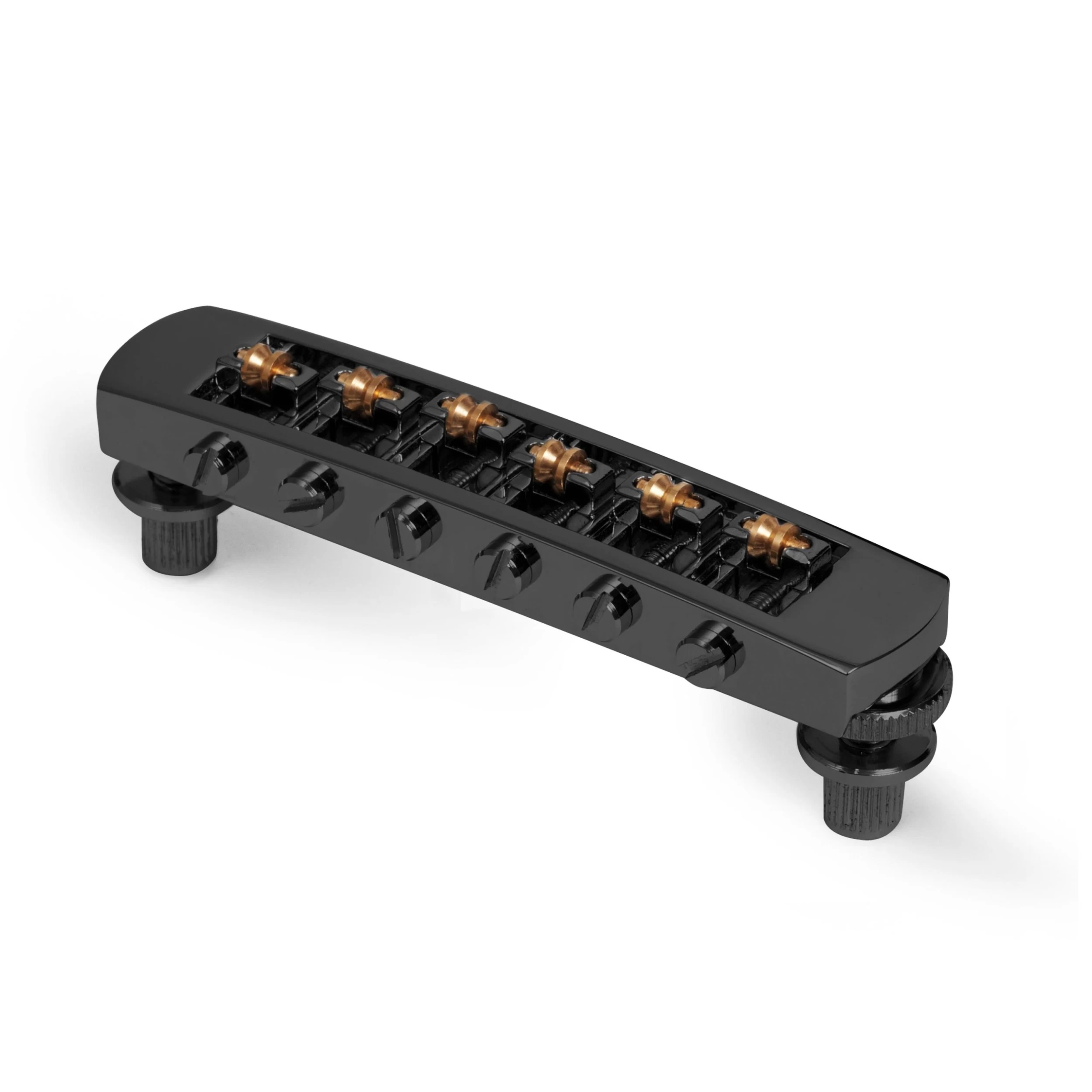

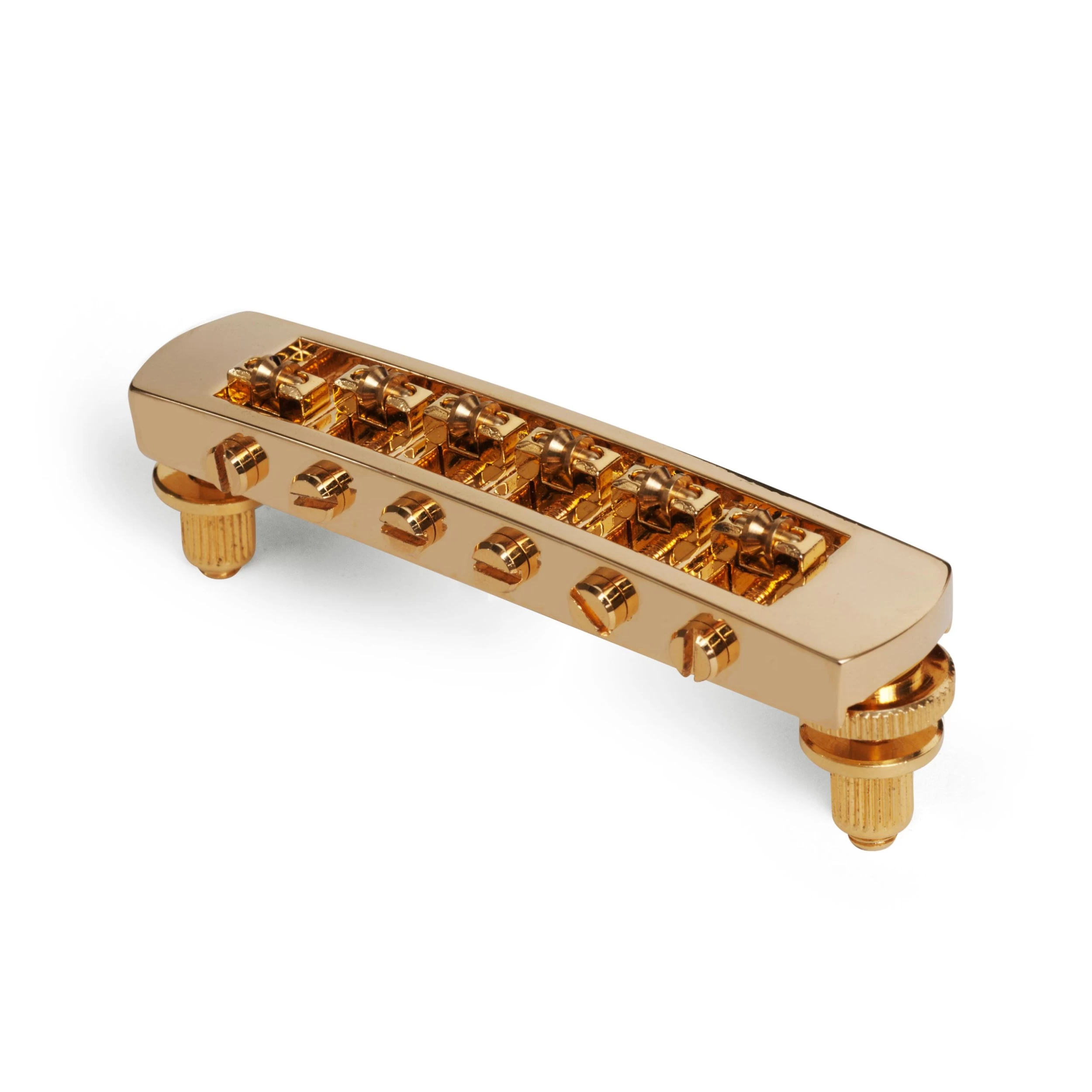

Golden Age Roller Bridge

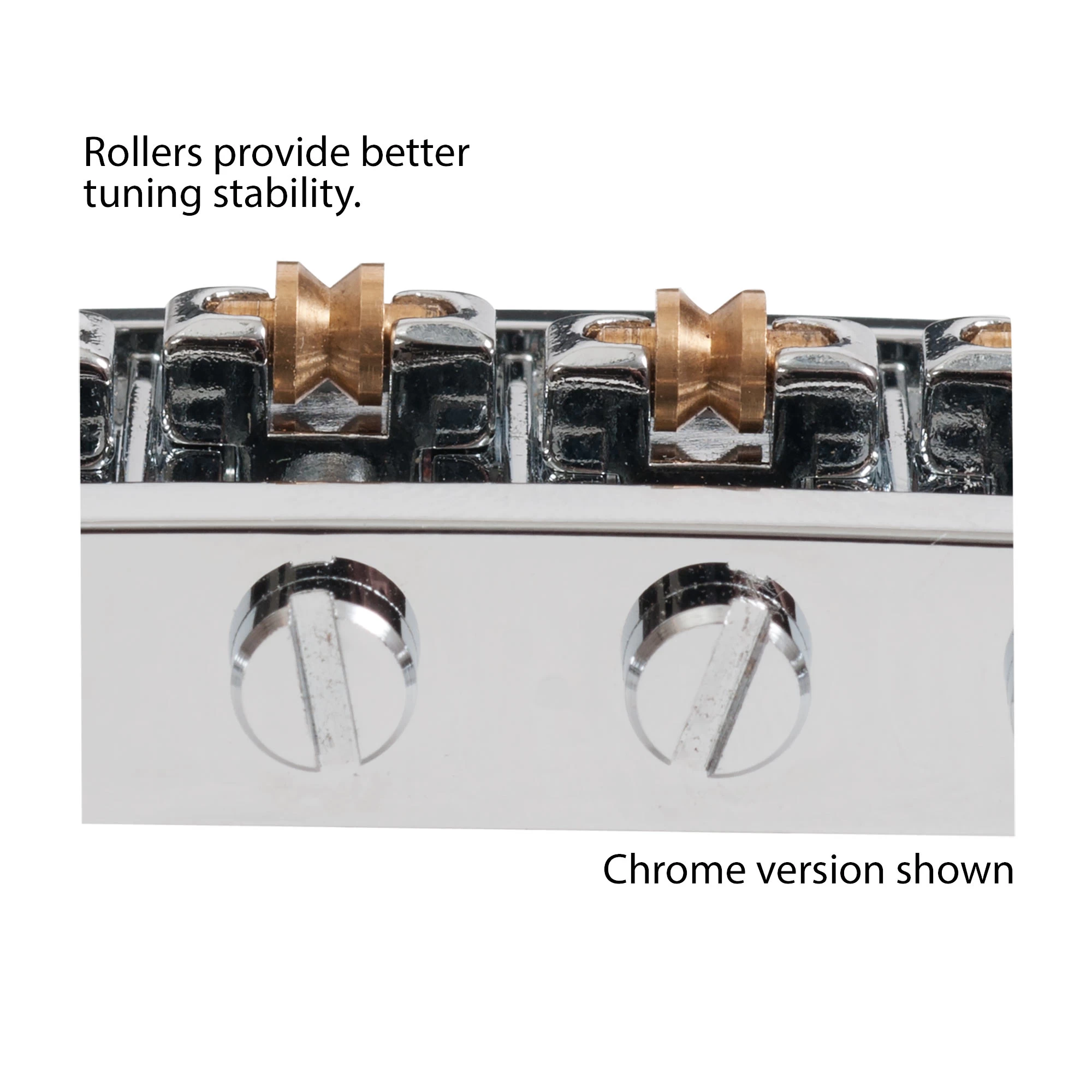

The only roller bridge that matches the 12″ radius of the Nashville Tune-O-Matic. Low-friction brass roller saddles let the strings move freely and return to accurate pitch.
We designed this bridge to work with Bigsby vibratos, in place of the Nashville Tune-o-matic. This is the only roller bridge that matches the 12″ radius of the Nashville, so you maintain the string action you’re used to. We gave it a low profile to keep the strings clear of the bridge body too, eliminating a frequent source of vibrato problems.
Thumbwheel height-adjustment studs and knurled bushings are included.

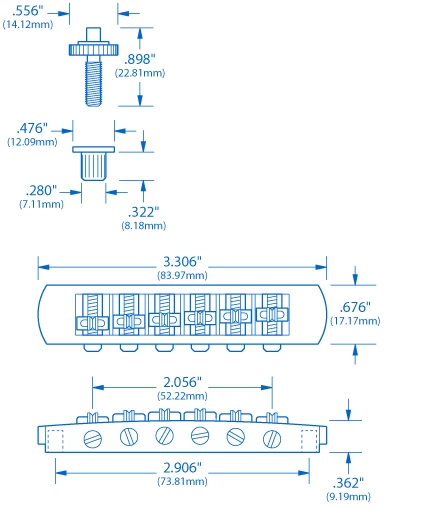

| String spread | Saddle radius | Stud spacing | Stud threads |
|
|
|||
| 2-1/16″ | 12″ | 2-29/32″ | M5 x .8 |
|
|
|||
String spread is the distance between the centers of the outer strings on a bridge or tailpiece.
Saddle radius determines the arc formed by all the individual saddle heights, and is similar to the measurement of a fretboard.
Stud/post spacing is the distance between the centers of the mounting posts of a bridge or ‘stop’ tailpiece.
-
- Item #
- Weight
-
- 1275
- 0.1700 lbs. (0.08 kg)
-
- 1275-B
- 0.170 lbs. (0.08 kg)
-
- 1275-G
- 0.1700 lbs. (0.08 kg)
-
- 1275-N
- 0.170 lbs. (0.08 kg)
