ABR-1 Tune-o-matic Bridge

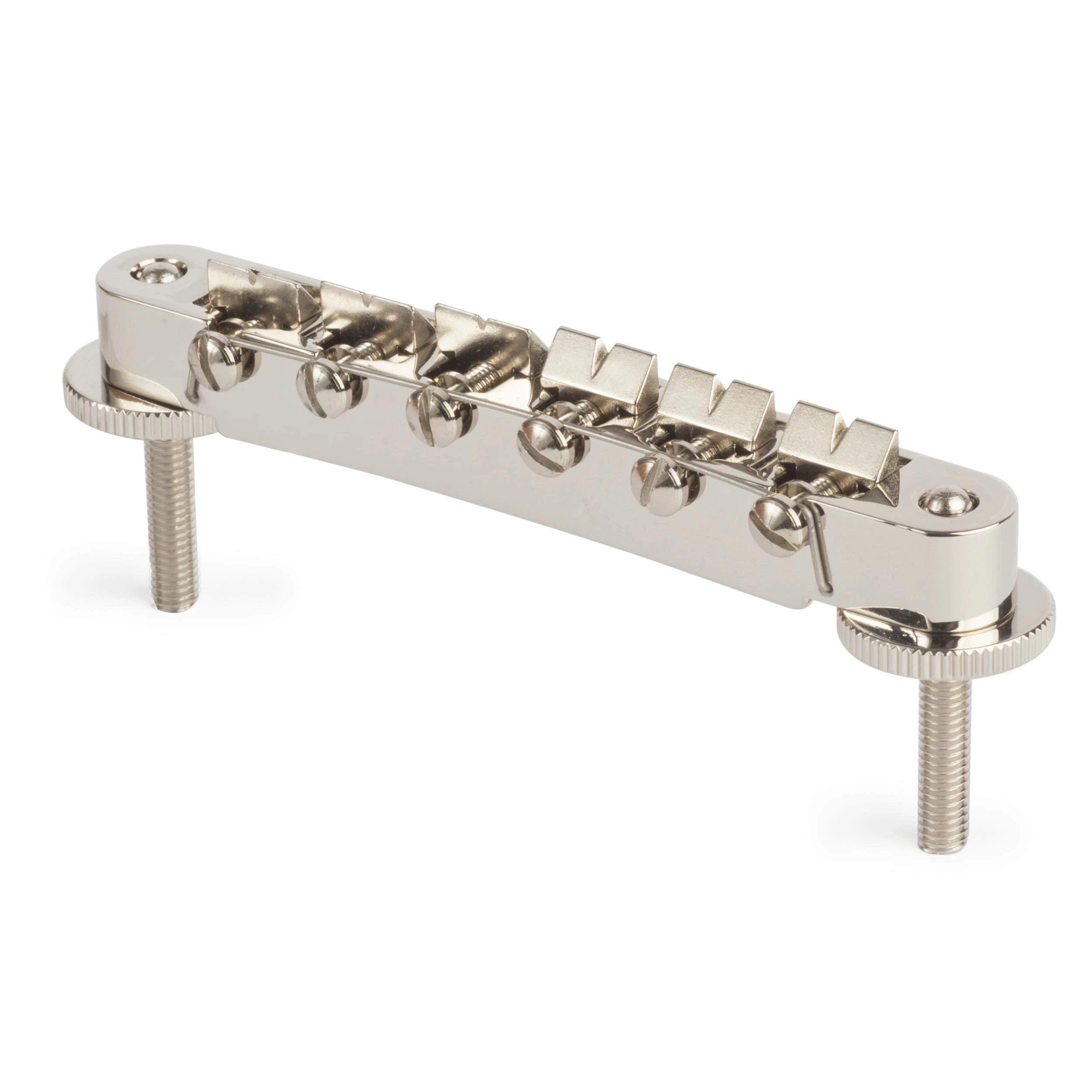

A 1960s style Tune-o-matic bridge for the vintage look, with adjustable intonation screws held by a retainer wire.
Bridge saddles are slotted. Knurled height adjustment thumbwheels and threaded mounting posts are included.

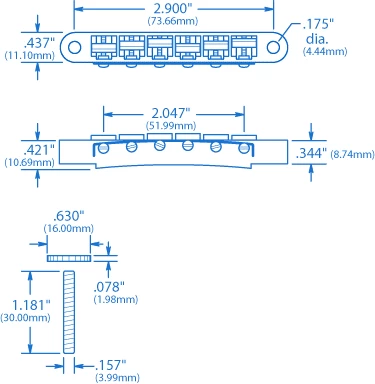

- String spread
2-1/16″
(52.37mm) - Saddle radius
14″
(355.60mm) - Post spacing
2-29/32″
(73.81mm) - Post threads
M4 x .7
About bridge & tailpiece measurements
String spread is the distance between the centers of the outer strings on a bridge or tailpiece.
Saddle radius determines the arc formed by all the individual saddle heights, and is similar to the measurement of a fretboard.
Stud/post spacing is the distance between the centers of the mounting posts of a bridge or ‘stop’ tailpiece.
Positioning the bridge
Find bridge placement for any scale with our free online tool fret position calculator.
Find bridge placement for any scale with our free online tool fret position calculator.
-
- Item #
- Weight
-
- 4566-G
- 0.1140 lbs. (0.05 kg)
-
- 4566-GU
- 0.114 lbs. (0.05 kg)
-
- 4566-N
- 0.1140 lbs. (0.05 kg)
